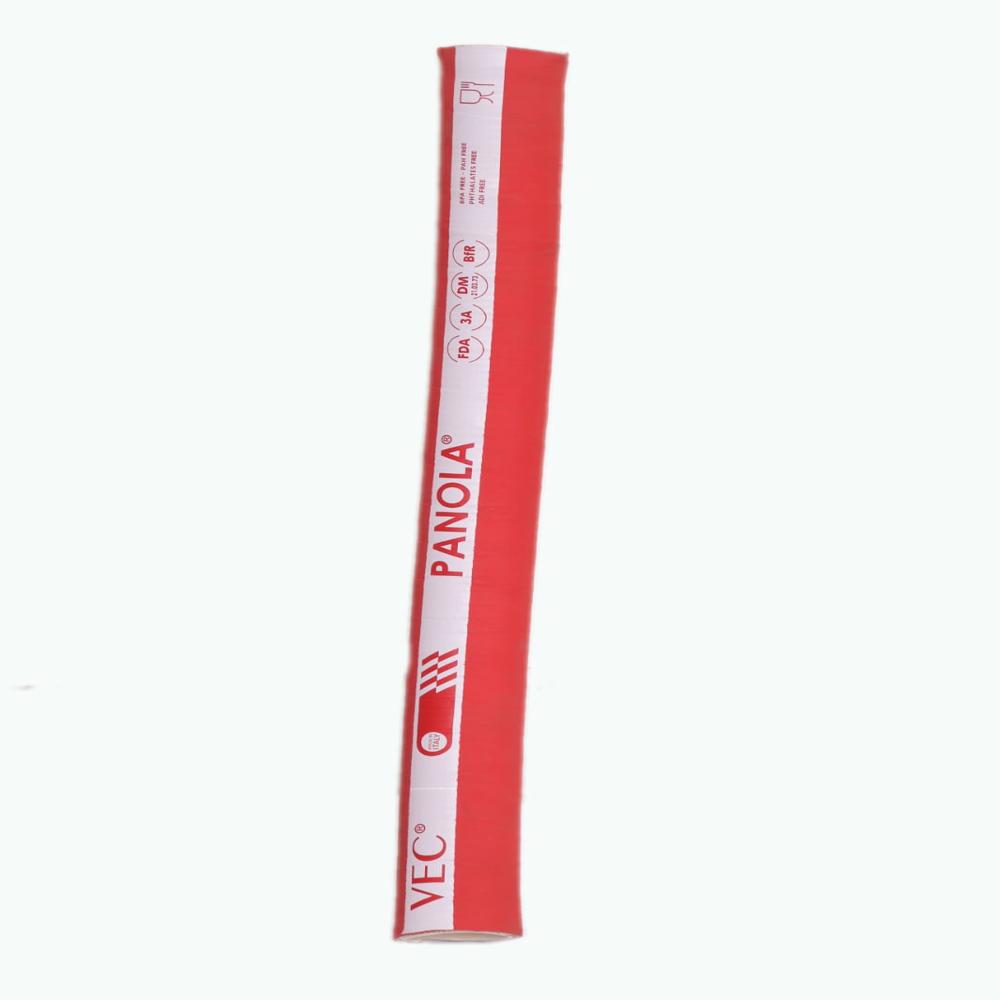

Send Inquiry"VEC" PANOLA
Price 2600.0 INR/ Meter
MOQ : 1 Meter
"VEC" PANOLA Specification
- Connection Type
- Flange
- Shape
- Round
- Reinforcement
- High strength synthetic plies with steel wire spirals
- Medium
- Oils / Petroleum-based fluids
- Cover
- Abrasion, ozone, and weather-resistant synthetic rubber
- Material
- Premium quality synthetic rubber
- Temperature
- -40C to +130C
- Pressure
- 20 Bar
- Inside Diameter
- 19 mm
- Outside Diameter
- 28 mm
- Application
- Hydraulic and industrial fluid transfer
- Weight
- As per dimension
- End Fittings
- Available as per requirement
- Length
- As per requirement
- Flexible
- Yes
- Colour
- Black
- Burst Pressure
- 60 Bar
- Surface
- Smooth
- Standard
- IS 444, SAE, DIN EN
About "VEC" PANOLA
Suction & Delivery Hose suitable for conveying Beverages & liquids like Beer, Wine, Fruit Juices/Pulp, Tomato Ketchup/Juices, Soft drinks, Drinking Water & low concentration acid/vinegar & Liquid foodstuff. Latest generation Inner Liner designed to resist High temperature and intensive cleaning and sterilization cycles.Tube: SMOOTH WHITE EPDM FOOD GRADE RUBBER, ODOURLESS, TASTELESS Reinforcement: High tensile Textile Plies and embedded steel helix
Cover: EPDM Rubber, Red Color, smooth rubber, abrasion, ageing & ozone resistant, Cloth finish
Reliable Hydraulic and Industrial Fluid Transfer
VEC PANOLA hoses are designed to ensure safe, efficient, and reliable transfer of oils and petroleum-based fluids in a variety of industrial and hydraulic applications. Their strong construction and compliance with international standards make them suitable for challenging operational environments, where durability and safety are paramount. These hoses are adaptable to specific needs with end fittings and dimensions tailored as required.
Durable Construction for Harsh Environments
Built using high strength synthetic plies and steel wire spirals, VEC PANOLA hoses resist wear and tear from abrasion, ozone, and harsh weather conditions. The premium synthetic rubber exterior extends the hose's lifespan, while the reinforced design keeps high-pressure performance consistent and safe over extended use.
FAQ's of "VEC" PANOLA:
Q: How is the VEC PANOLA hose installed in an industrial hydraulic system?
A: The VEC PANOLA hose can be integrated into hydraulic and industrial fluid systems using its flange connection type. End fittings are available as per user requirements, ensuring compatibility and leak-free performance. Always follow relevant safety standards during installation.Q: What are the primary applications of the VEC PANOLA hydraulic hose?
A: This hose is primarily used for hydraulic and industrial fluid transfer, especially for conveying oils and petroleum-based fluids in industries such as manufacturing, construction, mining, and transport machinery.Q: When should I consider using a VEC PANOLA hose over other options?
A: Choose the VEC PANOLA hose when you require a flexible, abrasion- and weather-resistant solution that complies with IS 444, SAE, and DIN EN standards for medium to high pressure applications (up to 20 Bar working, 60 Bar burst pressure) and variable temperatures.Q: Where can VEC PANOLA hoses be supplied or exported?
A: As a manufacturer, exporter, supplier, trader, and wholesaler, VEC PANOLA hoses are available for global distribution, ensuring industries worldwide can benefit from their advanced features and reliable performance.Q: What benefits does the synthetic rubber and reinforced construction provide?
A: The combination of premium quality synthetic rubber and high strength reinforcement ensures superior flexibility, durability, and resistance to abrasion, ozone, and weather, significantly extending the hose's service life under challenging operating conditions.Q: How do I choose the correct end fittings and dimensions?
A: End fittings and hose dimensions should be selected based on your application's specific requirements, including compatibility with equipment, type of connection (flange), and pressure/temperature conditions. Customization is available to ensure an exact fit.
