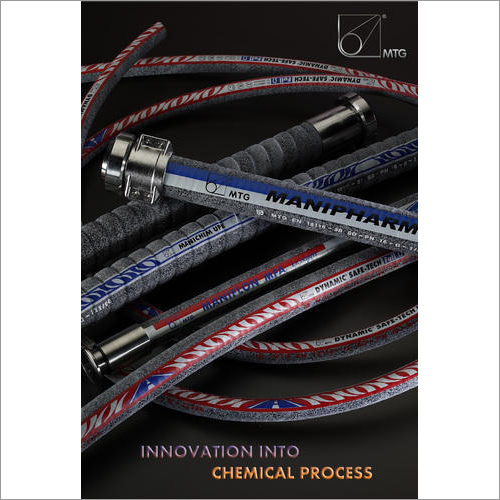

                Fully Conductive UPE Chemical Hose

                Fully Conductive UPE Chemical Hose

                Product Details:

                X

                Product Description

                Backed by a team of adroit professionals, we are engrossed in supplying the top-of-the-line Fully Conductive UPE Chemical Hose that is popularly known among our customers owing to its impressive design and resilience. This UPE chemical hose is fully conductive and resilient. It has got the capability of enduring chemical attacks, heavy loads, and tough conditions. Therefore, we are seeing a huge demand for the Fully Conductive UPE Chemical Hose in the marketplace.

                • Reinforcement: High resistance polyester plies. Built-in spiral from stainless steel AISI 304.
                • Cover:  EDPM rubber, black, smooth, antistatic (Resistivity: <10 ohm), resistant to abrasion, ozone and weather, cloth finish.
                • Marking: Longitudinal blue-white stripe MTG MANICHEM UPE. Longitudinal embossed tape meeting EN 12115.
                • Dissiption Of Static Electricity: Identification symbol : - Resistance < 10 Ohm.
                • Temperature Range: From -35°C up to 100°C. Resistant to steam up to 130°C for a maximum time of 30 minutes.
                • Safety Factor: 4 times working pressure up to ID 75 mm. 3 times working pressure above ID 75 mm

                 Specification

                Color

                Black

                Single Hose Length

                1m-6m, 6m-12m, 12m-20m, 20m-30m, 30m - 40m

                Size

                1/2 inch, 3/4 inch, 1 inch, 2 inch, 3 inch, 4 inch

                Material

                Upe( Ultra High Molecular Weight Polyethylene)

                Temperature Range

                From -35 Degree C up to 100 Degree C

                Safety Factor

                4 times working pressure up to ID 75 mm
