Send InquiryManipharm Sd-upe Hose
Price 8000 INR/ Meter
Manipharm Sd-upe Hose Specification
- Connection Type
- Crimped Coupling
- Medium
- Pharmaceuticals, cosmetic, foodstuffs, chemicals
- Cover
- EPDM blue, abrasion, ozone and weather-resistant
- Shape
- Round Hose
- Reinforcement
- Double steel helix and synthetic textile
- Hardness
- Shore A 655
- Material
- UHMWPE (Ultra High Molecular Weight Polyethylene) with synthetic layers
- Temperature
- -30C to +100C (cleaning up to 130C for max 30 minutes)
- Pressure
- 10 bar (working pressure), 40 bar (burst pressure)
- Inside Diameter
- 19 mm to 100 mm
- Outside Diameter
- 31 mm to 118 mm
- Compliance
- Meets FDA and USP Class VI requirements
- Vacuum Rating
- 0.9 bar
- Odor and Taste
- Odorless and tasteless
- Standard Length
- Up to 40 meters
- Inner Surface
- Smooth
- Applications
- Suction and delivery of aggressive products
- Electrical Conductivity
- Electrically conductive (anti-static copper wire)
- Bending Radius
- Flexible, minimum bend radius varies by diameter
- Marking
- Continuous ink jet marking
- Color
- Translucent with blue cover
Manipharm Sd-upe Hose Trade Information
- Minimum Order Quantity
- 10 Meter
- Main Domestic Market
- All India
About Manipharm Sd-upe Hose

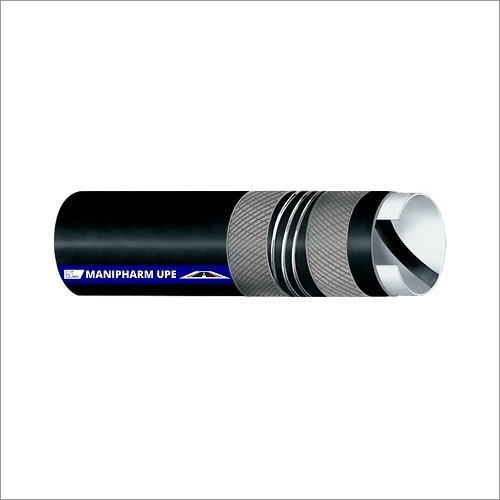

Manipharm Sd-upe Hose
We are instrumental in supplying the top-of-the-line Manipharm SD-UPE Hose that is popularly known among our customers owing to its impressive design and quality. It is widely used in the pharmaceutical industry for the transportation of pure and sensitive chemicals. Having made up of the first-rate raw material with the help of pioneering in-house tools and techniques, the offered Manipharm SD-UPE Hose is sure to last for an extended period of time.
Specification
| UV resistance | Available |
| Type | Vacuum Hose Pipe |
| unit Length | 6m,30m,3m |
| Nominal Size | >3 inch |
| Color | Black |
Engineered for Stringent Industries
Manipharm Sd-upe Hose is purpose-built to meet the rigorous demands of sectors such as pharmaceuticals, cosmetics, and food handling. Its compliance with FDA and USP Class VI guidelines ensures the safe and contamination-free transport of sensitive materials. The hose's anti-static copper wire and double steel helix reinforcement guarantee consistent performance in volatile environments.
Superior Safety and Longevity Features
Designed with a blue EPDM cover, this hose delivers outstanding resistance to abrasion, ozone, and harsh weather. The smooth inner layer prevents residue buildup and allows for tasteless and odorless transfer of materials, making it ideal for high-purity applications. Its flexible structure suits installation in various settings, whether compact or spacious.
FAQ's of Manipharm Sd-upe Hose:
Q: How is the Manipharm Sd-upe Hose used in pharmaceutical and food applications?
A: The hose is specifically engineered for the suction and delivery of aggressive products in pharmaceutical, food, cosmetic, and chemical industries. Its FDA and USP Class VI compliance and smooth, odorless, and tasteless bore ensure the safe and hygienic transfer of sensitive products.Q: What benefits does the electrically conductive (anti-static copper wire) feature provide?
A: This feature significantly reduces the risk of static electric charge buildup during product transfer, enhancing safety in environments where explosive or flammable media are present. It helps ensure reliable and safe operation in demanding industrial applications.Q: When should I consider using this hose for my process?
A: You should choose the Manipharm Sd-upe Hose when handling aggressive or sensitive media in environments that require certified hygienic standards and static electricity control. It's also suitable when a flexible, durable, and abrasion-resistant hose is needed.Q: Where can the Manipharm Sd-upe Hose be installed?
A: This hose is versatile and can be installed in a wide range of industrial settings, from pharmaceutical production lines to chemical plants and food processing facilities. Its flexible design allows for placement even in complex or restricted spaces.Q: What is the recommended cleaning process and temperature limits for this hose?
A: The hose withstands working temperatures from -30C to +100C. For cleaning, it can be subjected to temperatures up to 130C for a maximum of 30 minutes, making it suitable for most sterilization and sanitation protocols in sterile environments.Q: How does the hose's construction benefit long-term usage?
A: With double steel helix reinforcement, synthetic textile layers, and a rugged blue EPDM cover, the hose boasts high durability against mechanical stress and environmental factors. Its construction ensures longevity and reduces the frequency of replacements, optimizing operational efficiency.
