Send InquiryMtg Hot Alichem Hose Pipe
Price 4000 INR/ Meter
Mtg Hot Alichem Hose Pipe Specification
- Cover
- EPDM Rubber, abrasion and ozone resistant
- Shape
- Round
- Medium
- Reinforcement
- Multiple textile plies + helical steel wire
- Connection Type
- Flanged/Clamped/BSP end available
- Hardness
- 70 5 Shore A
- Material
- EPDM Rubber with synthetic reinforcement
- Temperature
- -30C to +100C (can withstand up to +120C for short periods)
- Pressure
- Up to 10 Bar (145 psi)
- Inside Diameter
- 25 mm, 32 mm, 38 mm, 51 mm, 76 mm
- Outside Diameter
- 35 mm, 41 mm, 47 mm, 61 mm, 90 mm
- Color
- Black / Marked
- Temperature Resistance
- Not affected by steam sterilization
- Safety Factor
- 3:1
- Surface
- Smooth
- Burst Pressure
- Up to 48 Bar
- Compliance
- FDA, EN 12115
- Electrical Conductivity
- Antistatic version available
- Application
- Transfer of hot chemicals in process industries
- Length
- Available in customized lengths up to 60 meters
- Weight
- Varies by diameter and length
- End Fittings
- SS 316L / PTFE / Customized
Mtg Hot Alichem Hose Pipe Trade Information
- Minimum Order Quantity
- 1 Meter
- Main Domestic Market
- All India
About Mtg Hot Alichem Hose Pipe

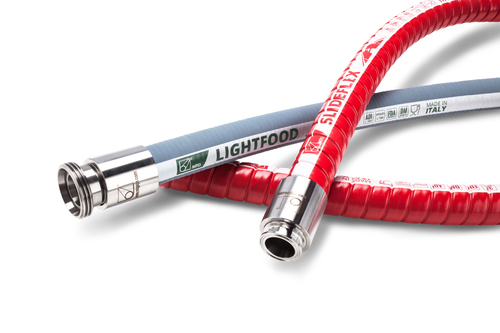

Mtg Hot Alichem Hose Pipe
We are instrumental in supplying the top-of-the-line MTG Hot Alichem Hose Pipe that is a multipurpose hose mainly designed for conveying pharmaceutical, chemicals, and food products within varied industries including food and biotech. The hosepipe provides an excellent solution for use under dynamic stress. It helps transport high-purity fluids. Due to its top-notch quality and resilience, we are experiencing a huge demand for the MTG Hot Alichem Hose Pipe in the marketplace.
Specification
| Cross section | Round |
| Nominal size | 1/2 inch TO 4 inch |
| Type | Beverage Hose Pipe |
| Unit length | 40 meters |
| Color | Blue ,Red |
| Single Hose Length | 6m-12m, 30M- 40M,20m-30m,12m-20m,1m-6m |
Specialized Design for Hot Chemical Transfer
The Mtg Hot Alichem Hose Pipe is tailored for the safe and efficient transfer of hot chemicals, acids, and solvents. Its EPDM rubber construction, reinforced with textile plies and helical steel wire, guarantees durability and resistance against harsh industrial conditions. The smooth surface and customizable fittings ensure seamless integration into a variety of process applications.
Uncompromised Safety and Compliance
Engineered with a safety factor of 3:1 and certified to FDA and EN 12115 requirements, this hose assures protection and adherence to global quality standards. The availability of antistatic versions supports operational safety, especially where static discharge is a concern. Its robust design accommodates pressures up to 10 Bar and short-term temperatures up to 120C.
Flexible Sizing and Customization
Available in several diameters and customizable lengths up to 60 meters, the Mtg Hot Alichem Hose Pipe can be tailored to fit specific industrial needs. End fittings such as SS 316L, PTFE, and other custom options allow for versatile connections, making it suitable for a broad range of fluid transfer operations.
FAQs of Mtg Hot Alichem Hose Pipe:
Q: How can the Mtg Hot Alichem Hose Pipe be used in process industries?
A: The Mtg Hot Alichem Hose Pipe is ideal for transferring hot chemicals, acids, solvents, and similar fluids within process industries. Its high temperature and chemical resistance make it particularly suited for continuous operation in environments where sterilization and intense fluid transfer are required.Q: What standards does the Mtg Hot Alichem Hose Pipe comply with?
A: This hose pipe is manufactured in accordance with FDA and EN 12115 regulations, ensuring it meets stringent safety and quality criteria for handling chemicals in industrial applications.Q: When should I opt for the antistatic version of the hose?
A: The antistatic version should be selected when there is a risk of static electricity buildup during the transfer of flammable or volatile fluids. This version helps maintain electrical conductivity, reducing the risk of sparks and associated hazards.Q: Where are these hose pipes primarily utilized?
A: These hose pipes are widely used in chemical processing plants, pharmaceuticals, and industrial facilities that require reliable transfer of hot chemicals or solvents, especially where abrasion and ozone resistance are essential.Q: What are the available connection types and end fittings for this hose?
A: The Mtg Hot Alichem Hose Pipe can be customized with flanged, clamped, or BSP end fittings. Options include SS 316L, PTFE, or other materials based on specific operational needs or compatibility requirements.Q: What benefits does the EPDM rubber construction offer?
A: EPDM rubber provides excellent resistance to heat, chemicals, abrasion, and ozone, ensuring that the hose maintains structural integrity and performance even under harsh operating conditions.Q: How is the required hose length and diameter determined?
A: Length and inside diameter can be customized based on the systems layout and volume requirements, with options up to 60 meters in length and several diameters available to suit various flow rates and installation needs.
