Send InquiryNon Conductive Upe Chemical Hose
Price 4000 INR/ Meter
Non Conductive Upe Chemical Hose Specification
- Shape
- Round
- Connection Type
- Flanged / Camlock / Customized
- Hardness
- Shore 755A
- Cover
- Black Non-Conductive Abrasion, Weather and Chemical Resistant EPDM Rubber
- Medium
- Chemical, Corrosive Liquids, Acids
- Reinforcement
- High Tensile Synthetic Textile with Embedded Steel Helix
- Material
- UPE (Ultra High Molecular Weight Polyethylene) Liner
- Temperature
- -40C to +100C
- Pressure
- 10 to 16 Bar
- Inside Diameter
- 25 mm to 150 mm
- Outside Diameter
- 36 mm to 166 mm
Non Conductive Upe Chemical Hose Trade Information
- Minimum Order Quantity
- 1 Meter
- Main Domestic Market
- All India
About Non Conductive Upe Chemical Hose

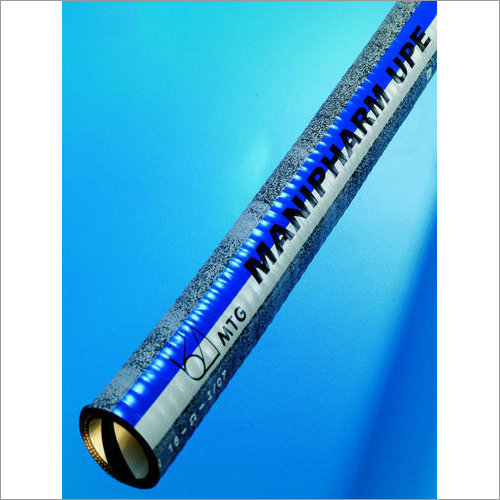

Non Conductive Upe Chemical Hose
We are actively engrossed in supplying the best in line Non Conductive UPE Chemical Hose, which are widely acclaimed among our customers owing to their superior design and unmatched performance. These hoses are made in our ultra-advanced production site with the help of pioneering in-house tools and techniques. Owing to their performance and capability of enduring heat and heavy loads, we are seeing a huge demand for the Non Conductive UPE Chemical Hose in the marketplace.
These non conductiveUPE chemical hoses are used for versatile applications such as for suction and delivery of a variety of chemical, alcoholic and foodstuff products. These chemical hoses are generally installed on tank trucks, discharge platforms, mobile equipment or recommended for implant applications in laboratories, food and chemical industries.
Applications:
Versatile hose for suction and delivery of a variety of chemical, alcoholic and foodstuff products.
Normally installed on tank trucks, discharge platforms, mobile equipment or recommended for inplant applications in laboratories, food and chemical industries.
Construction Tube:
UPE (ultra High Molecular Weight Polyethylene), clear colour,smooth, mirror-like.
Liner approved by BgVV and complying with FDA standards as well as M.D. 21.03.73 and following amendments.
Resistance: according to the MTG Chemical Resistance Chart.
Specification
|
Color |
Black |
|
Single Hose Length |
12m-20m, 20m-30m, 30m - 40m |
|
Size |
1/2 inch, 3/4 inch, 1 inch, 2 inch, 3 inch, 4 ich |
|
Material |
ULTRA HIGH MOLECULAR WEIGHT POLYETHYLENE( UPE) |
|
Marking |
Longitudinal blue-white stripe MTG POLYSPIR UPE - FDA - BgVV |
|
Temperature Range |
35 Degree C up to 100 Degree C |
|
Safety Factor |
More than 4 times working pressure |
Exceptional Chemical Compatibility
Designed for the safe handling of corrosive liquids, acids, and hazardous chemicals, the Non Conductive UPE Chemical Hose delivers superior performance. Its ultra high molecular weight polyethylene (UPE) liner provides exceptional chemical resistance, making it ideal for demanding industrial environments.
Flexible and Durable Construction
The hose's high tensile synthetic textile reinforcement with embedded steel helix, combined with its flexible EPDM rubber cover, gives it excellent maneuverability and durability. It withstands harsh weather and abrasion, ensuring a long lifespan even in rigorous applications.
Comprehensive Compliance and Safety
Manufactured in accordance with EN 12115, ISO 1307, and BS 5842 standards, this hose guarantees non-conductivity and safe operation when transferring hazardous fluids. The black color with identification markings and smooth inner liner contribute to safety and easy maintenance.
FAQ's of Non Conductive Upe Chemical Hose:
Q: How do I select the appropriate length and diameter for the Non Conductive UPE Chemical Hose?
A: Choose the hose length (up to 40 meters) and diameter (25 mm to 150 mm inside, 36 mm to 166 mm outside) based on your specific chemical handling requirements, flow rates, and the physical layout of your work area.Q: What benefits does the non-conductive UPE liner offer during hazardous fluid transfer?
A: The UPE liner ensures excellent chemical resistance and prevents electrical conductivity, enhancing safety when transferring aggressive chemicals, corrosive liquids, and hazardous fluids.Q: When is it best to use this hose in industrial applications?
A: This hose is most suitable for environments requiring frequent handling of aggressive chemicals, especially where strict safety standards regarding electrical resistance and chemical compatibility must be met.Q: Where can I install the Non Conductive UPE Chemical Hose?
A: You can install this hose in chemical plants, laboratories, industrial sites, and facilities across Italy and worldwide where reliable and safe chemical transport is essential.Q: What types of end fittings are available with this chemical hose?
A: End fittings are offered in Aluminum, Stainless Steel, Brass, PP, and can be supplied with flanged, camlock, or customized connection types to suit various installation needs.Q: How does the manufacturing process ensure compliance with international standards?
A: Each hose is made according to ISO 1307, EN 12115, and BS 5842 standards, ensuring quality, non-conductivity, chemical resistance, and reliable performance for hazardous fluid transfer.Q: What is the advantage of the smooth inner liner in this hose?
A: The smooth inner liner minimizes friction loss during fluid movement, promoting efficient chemical transfer while reducing the risk of material buildup and blockages.
