Send InquiryPfa Lined Rubber Hose
Price 9830.00 INR/ Meter
Pfa Lined Rubber Hose Specification
- Shape
- Round
- Hardness
- 70+/-5 Shore A
- Medium
- Corrosive Chemicals, Acids, Solvents
- Cover
- Black, chemical resistant rubber
- Connection Type
- Flanged End
- Reinforcement
- High tensile synthetic plies
- Material
- PFA Lined Rubber
- Temperature
- -20C to +150C
- Pressure
- Up to 10 kg/cm
- Inside Diameter
- 25 mm to 150 mm
- Outside Diameter
- 37 mm to 165 mm
Pfa Lined Rubber Hose Trade Information
- Minimum Order Quantity
- 5 Meter
- FOB Port
- Delhi
- Payment Terms
- Cash in Advance (CID)
- Supply Ability
- 10 Per Week
- Delivery Time
- 7 Days
- Sample Policy
- Contact us for information regarding our sample policy
- Main Export Market(s)
- Asia
- Main Domestic Market
- All India
About Pfa Lined Rubber Hose

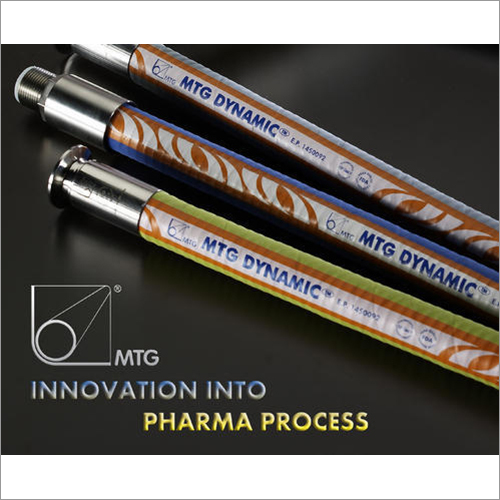

Pfa Lined Rubber Hose
PFA Hose are most suitable for high-temperature applications. They provide stiffness and long flex-life and have all the general properties of PTFE. It is widely used in the semiconductor and pharmaceutical industries for fluid handling applications. Owing to unmatched quality and effectiveness, we are seeing a huge demand for the PFA Hose in the marketplace. To cater to the diverse demands of our customers, we are supplying PFA Hoses in a plethora of sizes and styles.
Specification
|
Color |
White, Blue, ORANGE |
|
Nominal Size |
1/2 inch, 3/4 inch, 1 inch, 2 inch, 3 inch, >3 inch |
|
Type |
Vacuum Hose Pipe, |
|
Unit Length |
3m, 6m, 10m - 20 m |
|
Temperature Range |
From -40 Degree C up to 150 Degree C |
Exceptional Durability for Demanding Applications
Engineered to withstand harsh industrial environments, the PFA lined rubber hose boasts a minimum lining thickness of 3 mm and is reinforced with high tensile synthetic plies. Its chemical-resistant black cover ensures longevity, even when exposed to aggressive chemicals, UV light, or high pressure. Designed according to ASTM and DIN standards, this hose offers reliable and safe operation in chemical and pharmaceutical manufacturing processes.
Flexible Design for Seamless Installation
This hose provides highly flexible, kink-resistant performance, making it easy to maneuver and install in complex piping systems. With flanged ends available in stainless or mild steel, connection to existing pipelines is straightforward. The wide range of temperatures and pressures supported, combined with excellent electrical insulation and UV resistance, make it an ideal solution for versatile, demanding tasks.
FAQ's of Pfa Lined Rubber Hose:
Q: How is the PFA lined rubber hose installed in chemical transfer systems?
A: The hose is fitted with flanged ends-either stainless steel or mild steel-allowing secure connections to piping systems. Its lightweight and flexible nature makes installation straightforward, even in tight spaces or complex layouts.Q: What industries can benefit from using this hose?
A: Industries such as chemical manufacturing, pharmaceutical production, and food processing benefit from its resistance to corrosive chemicals, acids, and solvents, along with compliance to global standards like ASTM and DIN.Q: When should this hose be replaced or maintained?
A: Regular inspections for signs of wear, damage, or reduced flexibility are recommended. Replace the hose if you notice visible deterioration or if it fails to meet pressure or performance requirements due to prolonged exposure to harsh media.Q: Where is this hose suitable for installation?
A: It is suitable for installations in facilities handling corrosive chemicals, places requiring non-conductive equipment, outdoor setups needing UV resistance, and environments demanding wide operational temperature ranges.Q: What is the benefit of the non-conductive lining?
A: The non-conductive lining adds an extra layer of safety by preventing static electricity buildup, which is crucial when transferring flammable or reactive chemicals.Q: What is the process for selecting the correct hose specification?
A: Determine the chemical compatibility, required inside diameter (25 mm to 150 mm), pressure specifications, length (up to 6 meters), and desired connection type. Consulting with the supplier or manufacturer ensures optimal selection based on your system needs.
Price:
- 50
- 100
- 200
- 250
- 500
- 1000+
